My Logitech G15 keyboard's enter key died yesterday. Since I had to open it up for repair, I decided to mod it too. Mine is a 1st gen G15. The 1st gen G15's came with a lousy quality silver paint on the top part. Most of them start to rub off at the palm areas just below the bottom left Windows key. It leaves an ugly grey patch there. U'll c the ugly grey patch in a later pic once I start to dissamble the kb.

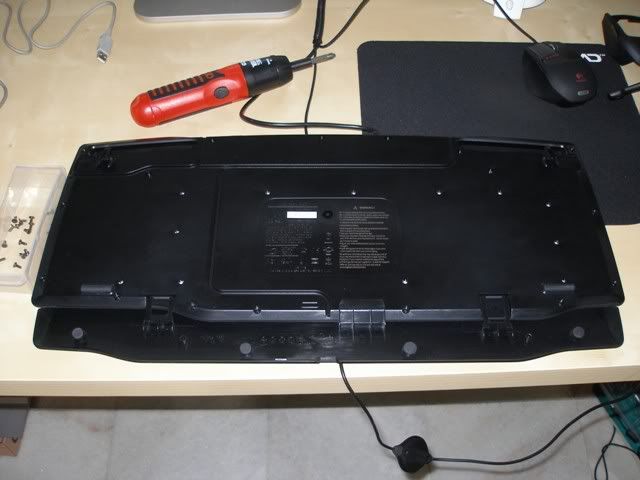

Anyway, let's get on with the mod. Started by flipping the kb onto the back so I can remove all the big black screws.

user posted image

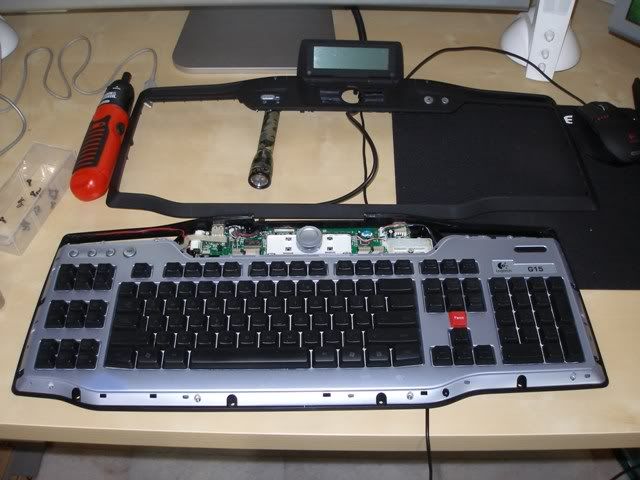

Then I popped the top piece off.

user posted image







Removed all the wires n popped off the main keyboard.

user posted image

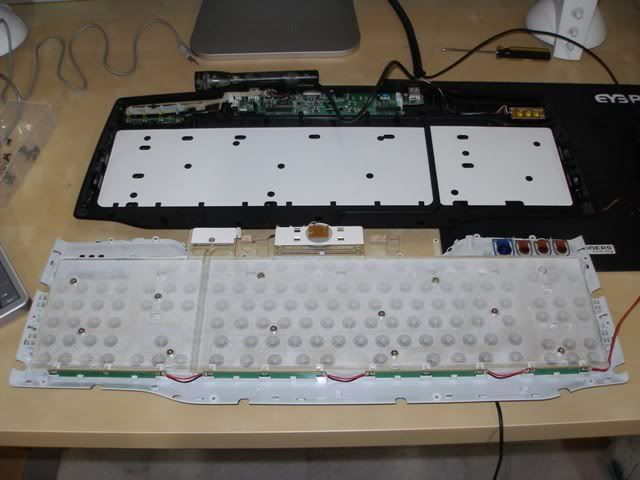

Flip it around n u'll c a clear acrylic piece that diffuses the light from the blue LEDs that gives the keys a nice even glow. Remove the 13 chrome screws on that piece and the kb contact n silicone piece comes off.

user posted image

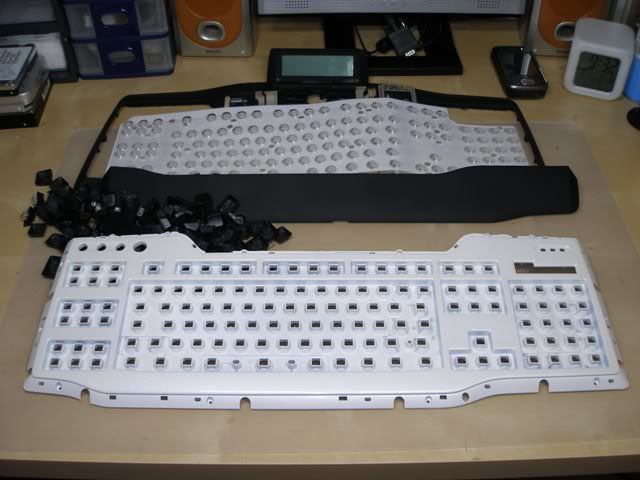

After removing the chrome screws u can remove the contact n silicone pad. I also removed all the keys at the same time. There's an amazing amount of dust that gets caught in there i tell u. sweat.gif

user posted image

This post has been edited by ianho: Jan 16 2008, 09:24 AM
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ianho
post Oct 19 2007, 11:59 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #2


Da MODerator
Group Icon

Group: Moderator
Posts: 10,599
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Mar 2005
From: Tg. Rambutan

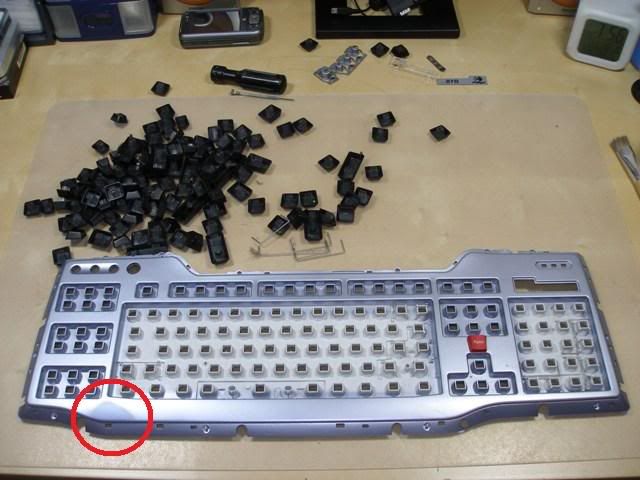

This is the silver piece with the lousy paint. Look at the silver paint in the red circle. It's completely rubbed off to the grey base. vmad.gif I've been wanting to remove everything so I can repaint the silver piece. Luckily I haven't had the time to do so. Or else I would haf had to do everything all over again after the Enter key died. After removing all the parts I took all the non electrical parts into the bathroom and gave them a good bath. My G15 was came out from the spa all refreshed after that. laugh.gif

user posted image

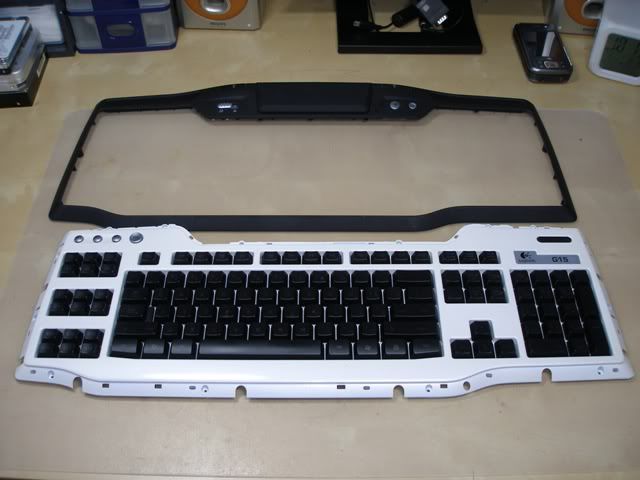

After a proper cleaning n sum surface preparation on the silver piece, I painted it in pearl white color.

user posted image








It's very hard to get pearl white to show in pictures so I did a macro shot for u guys to really see the pearl white paint. Normal distance pics make it look like normal gloss white. For those who r curious about the painting process to achieve this. It's 4 layers of gloss white to make sure the base coat is a nice even white. Then 2 layers of pearl white n finally 2 layers of clear coat on top to protect the pearl paint. The painting is really tedious. 8 coats of paint with 30 minutes drying time between coats. That's 4 hours just on drying time! After that I left it to dry properly overnight b4 reassembly.

user posted image

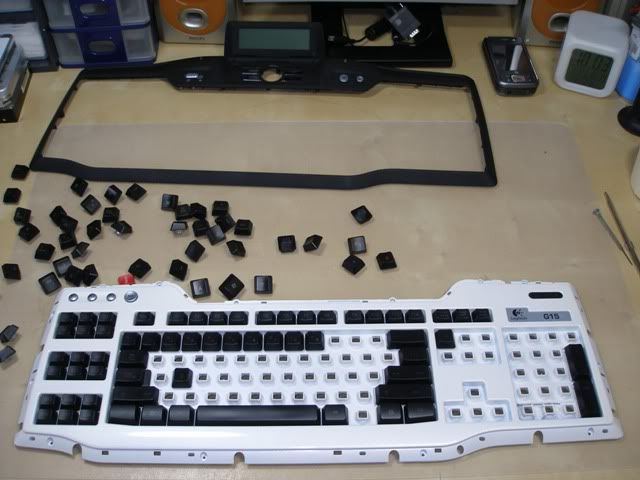

I started the reassembly this morning by popping all the keys back in.

user posted image








Almost there, all keys reassembled.

user posted image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ianho
post Oct 19 2007, 12:11 PM
Show posts by this member only |This post's rating (0+, 0-) | Post #3


Da MODerator
Group Icon

Group: Moderator
Posts: 10,599
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Mar 2005
From: Tg. Rambutan

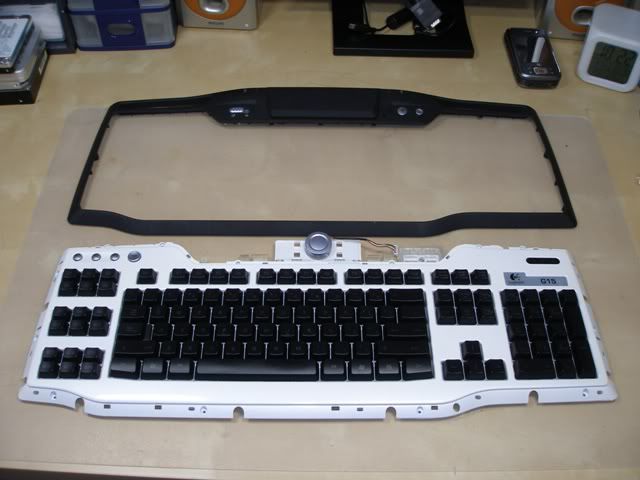

This step is very important for u fellas planning to try this on ur own. Make sure u reassemble the keys properly. The long buttons like Space n Shift for eg. haf a metal bar thingy there to ensure a nice even keystroke. U hafta make sure u assemble it back properly like the pic below or the keys will lose the nice even keystroke.

user posted image







After that I put the contact pads back on.

user posted image

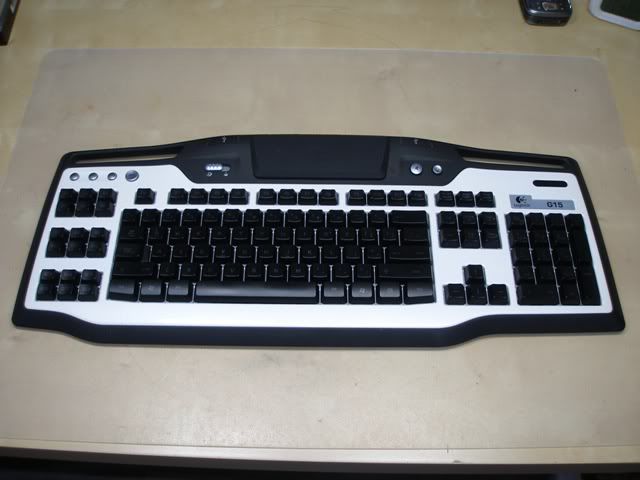

All done. rclxm9.gif rclxm9.gif rclxm9.gif rclxm9.gif

user posted image








Last step is to plug it into the PC n pray....................................

user posted image









I'm very happy to report that I've managed to bring the Enter key back to life. thumbup.gif Fortunately it was a dirty contact. I cleaned it with alcohol n it works perfectly now. Everything else like the all important LCD works perfectly too. That was the thing I was most worried about as a lot of mods on the G15 have dead LCDs due to careless handling. I handled mine with kid gloves to make sure everything works after reassembly. I'm so happy now. After a year of heavy usage, the G15 was looking really beat up n dirty. It now looks spanking new with a new coat a pearl white paint to boot. Now all u fellas with expired warranties................. GOGOGO. What r u waiting for? brows.gif
