Lowyat.NET OC-ed Intel(R) Core™2 Duo/Quad 24/7 Voltages Database

Rules and requirements:
1. Only 1 post each for one system.
2. 2 screenshots of CPU-Z each showing CPU and RAM properties (attach your image, don't host it).
3. Include informations/screenshots of BIOS/CPU and Memory voltages.
4. All of the requirements above are mandatory.
5. Use the given format to post.
6. Any more? Please give me some ideas. thanks.


Format Example:
CPU: E6600
Clock: 3.33GHz
Vcore: 1.36

RAM: 2G Crucial 10th Anniversary DDR2 PC2-5300 3-3-3-12 (2.2v)
FSB: 370MHz x 9
Strap: 1066
Timing: 3-3-3-4
Vdimm: 2.1


The List:
Allendale (65 nm)
- E4300

- E4400

Conroe (65nm)
- E6300 (Average: 1.356vcore | 2.16vdimm)
BlackThyra87 - 3.20GHz | | 1.325vcore | 2.2vdimm
remysix - 3.30GHz | | 1.362vcore | 2.2vdimm
error0024 - 3.15GHz | | 1.38vcore | 2.2vdimm
Hyde`fK - 3.2GHz | 1.36vcore | 2.05vdimm

- E6400 (Average: 1.37vcore | 2.1vdimm )
basSist - 3.20GHz | | 1.37vcore | 2.1vdimm

- E6420 (Average: 1.315vcore | 2.0vdimm )
kerryking - 3.28GHz | | 1.315vcore | 2.0vdimm

- E6550 (Average: 1.264vcore | 1.89vdimm )
fesick - 3.36GHz | | 1.264vcore | 1.89vdimm

- E6600 (Average: 3.23vcore | 2.04vdimm)
Sanko - 3.33GHz | 1.33vcore | 2.1vdimm
sHawTY - 3.20GHz | 1.31vcore | 2.2vdimm
gengstapo - 3.29GHz | 1.39vcore | 1.95vdimm
irangan - 3.0GHz | 1.325vcore | 1.9vdimm
fedoracore - 3.0GHz | 1.325vcore | 1.8vdimm
coolice - 3.465GHz | 1.32vcore | 2.3vdimm
hui_ping - 3.2GHz | 1.325vcore | 2.1vdimm
richgod - 3.38GHz | 1.4vcore | 2.0vdimm

- E6700

- E6750 (Average: 1.33vcore | 2.0vdimm )
kbf2152 - 3.2GHz | | 1.33vcore | 2.0vdimm

- X6800 (Average: 1.29vcore | 2.2vdimm)
cstkl1 - 3.32GHz | 1.29vcore | 2.2vdimm


Kentsfield (65nm)
- Q6600 (Average: 3.21vcore | 2.02vdimm)
LyraSummersile - 3.02GHz | 1.325vcore | 2.1vdimm
gengstapo - 3.4GHz | 1.5vcore | 1.95vdimm

- QX6700


Wolfdale (45nm)
-E8200

-E8300

-E8400

-E8500

This post has been edited by Sanko: May 12 2008, 11:03 AM

no screenie what so ever?

no proof of stability or whatsoever?

anyway, I suggest that you use the similar template as this database:
http://forum.lowyat.net/topic/242290

including the topic

I want everything standardized, then I'll consider moving this to the overclocking database.

This post has been edited by soulfly: Mar 12 2007, 10:01 AM

soulfly, gonna do that. i mean the templates. i want everything to be standardized too. for the stability issue, if it's need then i'll put it up (by demand). for me it's not really what i'm emphasing here as my only concern is to compile a list of 24/7 voltages. therefore, i choose to believe lyn forummers that they will post their TRUE 24/7 setting, and not fake. the goal of this list is to get the average vcore, vdimm and oc rate for c2d/c2q users. i don't know whether it will work out of not but really hope it will.

This post has been edited by Sanko: Mar 12 2007, 10:08 AM

CPU: E6400
Clock: 3.20GHz
Vcore: 1.375 Bios

RAM: 2x1GB Mushkin EM2 DDR2-800 5-5-5-12 1.8v
FSB: 400MHz x 8
Strap: 1066
Timing: 4-4-4-12
Vdimm: 2.1



This post has been edited by basSist: Mar 12 2007, 05:33 PM

CPU: E6600
Clock: 3.33GHz
Vcore: 1.33

RAM: 2G Crucial 10th Anniversary DDR2 PC2-5300 3-3-3-12 (2.2v)
FSB: 370MHz x 9
Strap: 1066
Timing: 3-3-3-4
Vdimm: 2.1

This post has been edited by Sanko: Mar 13 2007, 03:36 PM

Attached thumbnail(s)

CPU: E6600
Clock: 3.2GHz
Vcore: 1.312 [Stock Vcore]

RAM: 1G Micron D9GKX DDR800 @ 1GHz 4-4-4-10
FSB: 400X8 [1600MHz Bus Speed]
Strap: 1066
Timing: 4-4-4-10
Vdimm: 2.2

[attachmentid=203856]

This post has been edited by sHawTY: Mar 13 2007, 10:21 AM

CPU: E6300
Clock: 3.2GHz
Vcore: 1.325 [Stock Vcore]

RAM: 1G Micron D9GKX DDR800 @ 916MHz 4-4-4-10
FSB: 458X7 [1832MHz Quad-Pumped Bus Speed]
Strap: 1066
Timing: 4-4-4-10
Vdimm: 2.2

This post has been edited by BlackThyra87: Mar 17 2007, 10:57 PM

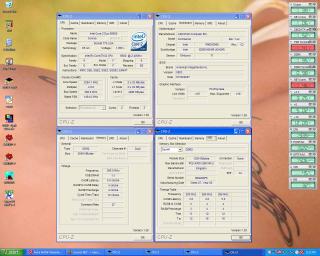

Attached thumbnail(s)

CPU: e6600
Clock: 3.29GHz
Vcore: 1.39

RAM: 1GB KVR PC2-4300 x2@ 732MHz 5-4-4-12
FSB: 366 X9
Strap: 1066
Timing: 5-4-4-12
Vdimm: 1.95



Attached thumbnail(s)

CPU: X6800
Clock: 3317.6GHz
Vcore: 1.288 Bios, Speedfan 1.29

RAM: 2x1GB Crucial Ballistix Tracer PC2-8000@ 948 4-4-4-12 2T
FSB: 474.5x7
Strap: 1066
Timing: 4-4-4-12
Vdimm: 2.2

This post has been edited by cstkl1: Mar 22 2007, 03:12 AM

Attached thumbnail(s)

CPU: E6600
Clock: 3.00GHz
Vcore: 1.325

RAM: 2 Gig Kingston Value RAM DDR2 533
FSB: 333MHz x 9
Strap: 1066
Timing: 3-3-3-8
Vdimm: 2.0

---

Added on April 6, 2007, 2:14 amcurrently running at 1.9vdimm only. thanks

This post has been edited by irangan: Apr 6 2007, 02:14 AM

CPU: E6300
Clock: 3.30GHz
Vcore: 1.3625v

RAM: 2G Crucial 10th Anniversary DDR2 PC2-5300 3-3-3-12 (2.2v)
FSB: 473MHz x 7
Strap: 1066
Timing: 4-4-4-12
Vdimm: 2.2



Attached thumbnail(s)

CPU: E6600
Clock: 3.00 GHz
Vcore: 1.325v

RAM: TwinXMS2x512mb 5400C4 v8.1
FSB: 334MHz x 9
Strap: 1066
Timing: 4-4-4-12
Vdimm: 1.8v

CPU: E6600
Clock: 3.465GHz
Vcore: 1.32v during idle,drop to 1.29v when load

RAM: 1G Micron OEM DDR2 PC2-6400 5-5-5-12 (1.8v)
FSB: 433MHz x 8
Strap: 1066
Timing: 4-4-3-9
Vdimm: 2.3v


Attached thumbnail(s)

CPU: E6600
Clock: 3.2GHz
Vcore: 1.325

RAM: 2GB Super Talent T800UX2GC4
FSB: 356MHz x 9
Strap: 1066
Timing: 4-4-4-12
Vdimm: 2.1

This post has been edited by hui_ping: Jul 30 2007, 09:35 PM

Attached thumbnail(s)

@TS, this would be a useful database.

What not include some more info in the database summary like:
1) Core temp/type of cooling
2) Ram timings/speed (since you have Vdimm)

This post has been edited by kmarc: Jun 24 2007, 12:28 PM

CPU: E6300
Clock: 3.20GHz
Vcore: 1.328 Full load | 1.36 BIOS set

RAM: 2 x 1GB Crucial VR D9GMH
FSB: 457 x 7
Strap: 1066
Timing: 4-4-4-12
Vdimm: 2.05

Idle


Load


This post has been edited by Hyde`fK: Jun 24 2007, 11:01 PM

hrmm.... i'll take that into consideration. i guess if the cooling method used does influence the vcore value as WC MAYBE can adapt higher vcore. but vdimm i guess not much influence. give me some time to think. the ram speed and timing is kinda hard to categorize but let's see what i can do.

anyway, the main reason i create such database just to show forummers what vcore and vdimm ppl use in their 24/7 setting. regardless of how high they can oc actually. it's like vcore will be the measument in newbie oc quest for a 24/7 oc setting.

This post has been edited by Sanko: Jun 28 2007, 06:13 PM

I think core temp and type of cooling (including type of HSF or WC kit) is helpful. Newbie's can follow the info given but may not be aware that the proc is running at too high a temperature!

CPU: E6300
Clock: 3.15GHz
Vcore: 1.38V

RAM: Cosair 667MHZ Value Ram (1.8v)
FSB: 450MHz x 7
Timing: Normal
Vdimm: 2.2

http://valid.x86-secret.com/show_oc?id=212944

*Picture updated*



This post has been edited by error0024: Jul 5 2007, 02:08 AM
