> Phenom II steppings and max OC database!, Just like it says ! ! !

verdict
post Apr 19 2009, 04:17 PM
Show posts by this member only |This post's rating (0+, 0-) | Post #1


Phenomenal II "FX" Guru
******

Group: Senior Member
Posts: 1,432
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Apr 2008
From: -Northbridge to Southbridge-





user posted image


.:: LOWYAT.NET Phenom II steppings and max OC database ::.

This thread will be dedicated to making a list of all the Phenom II steppings and the max stable overclocks LYN users have attained with those steppings. I don't want to argue about what "stable" is, so please use good judgment that your OC is stable before you spread the news...this is here to help people, so I would like solid info. That doesn't mean 24hr Prime, it just means that your system isn't crashing when its being stressed by stress programs or intensive gaming, at whatever interval you deem to prove stability.

:: Minor Info Before Start ::

- These chips love low temperatures, and low voltage.
- Instability can be helped a lot by upping the CPU NB Vid a few notches.
- Bluescreen crashes are related to IMC/Memory instability, Black screens related to cpu clocks/voltage and freezes/sudden restarts related to temperatures.
- Higher overclocks are reached in 32-bit windows
- When OCing, start with the Ram and NB OCs FIRST. This helps to ensure that you eliminate all other factors holding back a core OC from stability.




Minimum PRIME For 1 Hour Is Required for Stability Test !!!


To submit a listing, please submit a post containing the following:

- Phenom II type (9xx, 9x5, etc)
- CPU stepping (printed on the CPU IHS) or whatever you have.
- Revision (check CPU-Z) ( Latest )
- Max CPU clock speed, reference clock and multiplier
- CPU voltage
- CPU-NB voltage
- Northbridge clock (check CPU-Z) and voltage
- HTT link speed and voltage
- Motherboard used
- Type of cooling

PLEASE post a screenshot of your CPU-Z data with both the CPU and Memory tabs viewable... it makes it easier for me to find certain information for the database.

And please feel free to re-submit updated OC's, but be sure to note any changes to the system and/or specs.

.:: EX@mple On Submitting result ::.

- Phenom II 940
- CPU stepping : CACVC AC 0850CPMW
- Revision : RB-C2
- Max CPU clock speed : 3797MHz (245 * 15.5)
- CPU voltage : 1.552V
- Northbridge clock : 1225 Mhz @ 1.39V
- Motherboard used : DFI DK790FXB M2RSH
- Type of cooling : CUSTOM WC


Attached Image


.:: PRIME STABLE ::.
» Click to show Spoiler - click again to hide... «


.:: SUICIDE ::.

» Click to show Spoiler - click again to hide... «


This post has been edited by verdict: Today, 02:20 AM
User is online!Profile CardPM
Go to the top of the page
+Quote Post
-pWs-
post Apr 19 2009, 04:22 PM
Show posts by this member only |This post's rating (0+, 0-) | Post #2


Folding@Home
Group Icon
Folding@Malaysia

Group: Elite
Posts: 7,945
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Aug 2006
From: 224.0.0.6






Hi TS,

It is better for you yourself to post a example of your entry. smile.gif

-pWs-
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
verdict
post Apr 19 2009, 04:25 PM
Show posts by this member only |This post's rating (0+, 0-) | Post #3


Phenomenal II "FX" Guru
******

Group: Senior Member
Posts: 1,432
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Apr 2008
From: -Northbridge to Southbridge-





.:: PRIME STABLE ::.

Phenom II 940 BE | 3797Mhz | verdict | DFI DK790FXB M2RSH | Team Xtreem Dark | 816Mhz | 4-4-4-12-20 | Custom WC Kit

- Phenom II 940
- CPU stepping : CACVC AC 0850CPMW
- Revision : RB-C2
- Max CPU clock speed : 3797MHz (245 * 15.5)
- CPU voltage : 1.552V
- Northbridge clock : 1225 Mhz @ 1.39V
- Motherboard used : DFI DK790FXB M2RSH
- Type of cooling : CUSTOM WC


Thanks You Bro -pWs-...

Excited until forgot to show it... sweat.gif notworthy.gif

This post has been edited by verdict: Apr 20 2009, 02:11 AM
User is online!Profile CardPM
Go to the top of the page
+Quote Post
xixo_12
post Apr 19 2009, 04:28 PM
Show posts by this member only |This post's rating (0+, 0-) | Post #4


Chip 'GRiD' Dale
*******

Group: Senior Member
Posts: 5,168
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Nov 2006
From: Pulau Sipadan Status: Single Core




+1.. nice effort..
malaysia always got bad stepping laugh.gif
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
verdict
post Apr 19 2009, 04:48 PM
Show posts by this member only |This post's rating (0+, 0-) | Post #5


Phenomenal II "FX" Guru
******

Group: Senior Member
Posts: 1,432
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Apr 2008
From: -Northbridge to Southbridge-





QUOTE(xixo_12 @ Apr 19 2009, 05:28 PM)
+1.. nice effort..
malaysia always got bad stepping laugh.gif
*

Agree sis xixo..so now i just wanna gather few info on Phenom BATCH Stepping... laugh.gif

See weither any one here in LYN got GOLDEN one...ekekeke... wub.gif

This post has been edited by verdict: Apr 20 2009, 02:12 AM
User is online!Profile CardPM
Go to the top of the page
+Quote Post
one3rd
post Apr 19 2009, 05:45 PM
Show posts by this member only |This post's rating (0+, 0-) | Post #6


Getting Started
**

Group: Junior Member
Posts: 50
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jan 2008




rclxms.gif Phenom II 720BE
flex.gif CPU stepping : CACZC AC 0904EPMW
nod.gif Revision : RB-C2
notworthy.gif max CPU clock speed : 3900.2MHz (200 * 19.5)
thumbup.gif CPU voltage : 1.520V
whistling.gif Northbridge clock : 2400.2 Mhz @ default
cool.gif motherboard used : DFI DK790FXB-M2RSH
rclxm9.gif type of cooling : CUSTOM WC


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
picksickrick
post Apr 19 2009, 06:01 PM
Show posts by this member only |This post's rating (0+, 0-) | Post #7


Getting Started
**

Group: Junior Member
Posts: 288
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Aug 2008




wow... very the nice punya results for x3 smile.gif
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
verdict
post Apr 19 2009, 06:23 PM
Show posts by this member only |This post's rating (0+, 0-) | Post #8


Phenomenal II "FX" Guru
******

Group: Senior Member
Posts: 1,432
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Apr 2008
From: -Northbridge to Southbridge-





QUOTE(one3rd @ Apr 19 2009, 06:45 PM)
Phenom II 720BE
CPU stepping : CACZC AC 0904EPMW
Revision : RB-C2
max CPU clock speed : 3900.2MHz (200 * 19.5)
CPU voltage : 1.520V
Northbridge clock : 2400.2 Mhz @ default
motherboard used : DFI DK790FXB-M2RSH
type of cooling : CUSTOM WC
*

Done updating your result... wub.gif

please do send me your 1 hour PRIMING TEST SS... nod.gif

Other wise i will put your result as "SUICIDE" brows.gif
QUOTE(picksickrick @ Apr 19 2009, 07:01 PM)
wow... very the nice punya results for x3 smile.gif
*

Come on dude...fast FATS using Phenom II... whistling.gif


This post has been edited by verdict: Apr 19 2009, 08:15 PM
User is online!Profile CardPM
Go to the top of the page
+Quote Post
picksickrick
post Apr 19 2009, 08:18 PM
Show posts by this member only |This post's rating (0+, 0-) | Post #9


Getting Started
**

Group: Junior Member
Posts: 288
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Aug 2008




let me kumpul $$$ dulu hehhee...

for now play my f3 6000+ first smile.gif
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cwk88
post Apr 20 2009, 12:12 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #10


Casual
***

Group: Junior Member
Posts: 372
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Dec 2006





i cant oc well on win 7.. hv to chg bac to vista 1st =(
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
one3rd
post Apr 20 2009, 12:45 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #11


Getting Started
**

Group: Junior Member
Posts: 50
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jan 2008

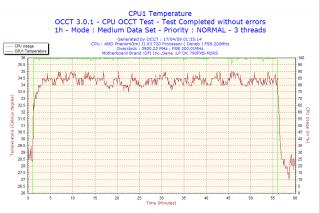

Bro,here u go... rclxms.gif rclxms.gif

Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AceCombat
post Apr 20 2009, 01:13 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #12


Intel Certified "Quad Core" Extreme's Egg-Boiler
*******

Group: Senior Member
Posts: 4,412
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Dec 2006
From: Home of Adrenaline™






Guys,Phenom II is what ya? using DDr3 one?
tangan gatai la,wanna buy one and hit u all tongue.gif
And bro verdict,i think it's better to record down idle and load temp and the cooler being used smile.gif
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
shinjun
post Apr 20 2009, 01:16 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #13


Starting is always a hard one
******

Group: Senior Member
Posts: 1,542
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jan 2007





QUOTE(AceCombat @ Apr 20 2009, 01:13 AM)
Guys,Phenom II is what ya? using DDr3 one?
tangan gatai la,wanna buy one and hit u all tongue.gif
And bro verdict,i think it's better to record down idle and load temp and the cooler being used smile.gif
*



Phenom II is currently latest AMD processor line up.

Got both DDR2 and DDR3 memory controller, so it can be use in both AM2+ mobo with DDR2 or latest AM3 mobo with DDR3.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
verdict
post Apr 20 2009, 01:51 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #14


Phenomenal II "FX" Guru
******

Group: Senior Member
Posts: 1,432
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Apr 2008
From: -Northbridge to Southbridge-





QUOTE(AceCombat @ Apr 20 2009, 02:13 AM)
Guys,Phenom II is what ya? using DDr3 one?
tangan gatai la,wanna buy one and hit u all tongue.gif
And bro verdict,i think it's better to record down idle and load temp and the cooler being used smile.gif
*

Thanks for the opinion Ace Mei Mei...i will consider it... wub.gif nod.gif
QUOTE(cwk88 @ Apr 20 2009, 01:12 AM)
i cant oc well on win 7.. hv to chg bac to vista 1st =(
*

Ho Ho Ho...i will wait for you dude...come2 fast show us ur result bro... rclxms.gif
QUOTE(shinjun @ Apr 20 2009, 02:16 AM)
Phenom II is currently latest AMD processor line up.

Got both DDR2 and DDR3 memory controller, so it can be use in both AM2+ mobo with DDR2 or latest AM3 mobo with DDR3.
*

Yes ur rite shinjun...he he he...after this i will give you 1+... wub.gif
QUOTE(one3rd @ Apr 20 2009, 01:45 AM)
Bro,here u go... rclxms.gif  rclxms.gif
*

Done noted and updated...


This post has been edited by verdict: Apr 20 2009, 02:00 AM
User is online!Profile CardPM
Go to the top of the page
+Quote Post
gamers maniac
post Apr 20 2009, 01:56 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #15


Retired Ocer, DDr2 collector
******

Group: Senior Member
Posts: 1,037
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jan 2003
From: Ipoh






ace should join amd clan thumbup.gif . many leng lui here wub.gif whistling.gif
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
verdict
post Apr 20 2009, 02:01 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #16


Phenomenal II "FX" Guru
******

Group: Senior Member
Posts: 1,432
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Apr 2008
From: -Northbridge to Southbridge-





QUOTE(gamers maniac @ Apr 20 2009, 02:56 AM)
ace should join amd clan  thumbup.gif . many leng lui here  wub.gif  whistling.gif
*

He He He...Thermalright tu yg x tahan tu...ekekeke... brows.gif brows.gif

Amacam...ada improve x ??? wub.gif

Wait for Ace Mei Mei to join us...its "G POWER" wub.gif

This post has been edited by verdict: Apr 20 2009, 02:02 AM
User is online!Profile CardPM
Go to the top of the page
+Quote Post
AceCombat
post Apr 20 2009, 02:26 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #17


Intel Certified "Quad Core" Extreme's Egg-Boiler
*******

Group: Senior Member
Posts: 4,412
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Dec 2006
From: Home of Adrenaline™






but i have not much experience in overclocking an AMD processor cry.gif
this little lenglui sure kena bully kaw kaw by toikor taikor here cry.gif

anyway,can recommend me some nice setup for Phenom II?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iwan6996
post Apr 20 2009, 02:42 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #18


Getting Started
**

Group: Junior Member
Posts: 66
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jun 2008





im phenom ii 940 be user
but dont know how to oc la plak
hehe...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
verdict
post Apr 20 2009, 03:10 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #19


Phenomenal II "FX" Guru
******

Group: Senior Member
Posts: 1,432
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Apr 2008
From: -Northbridge to Southbridge-





QUOTE(iwan6996 @ Apr 20 2009, 03:42 AM)
im phenom ii 940 be user
but dont know how to oc la plak
hehe...
*

Self learning is a must bro...reffer to the AMD Thread ler...

laugh.gif thumbup.gif whistling.gif
User is online!Profile CardPM
Go to the top of the page
+Quote Post
cyberloner
post Apr 20 2009, 03:16 AM
Show posts by this member only |This post's rating (0+, 0-) | Post #20


Regular
******

Group: Senior Member
Posts: 1,211
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: May 2005
From: Penang





- Phenom II X4 810 Am3
- CPU stepping HDX810WFK4FGI CAC2C AC 0904APMW
- Revision RB_C2
- Max CPU clock speed 3601Mhz 277X 13
- CPU voltage +0.15 1.45 Vcore
- CPU-NB voltage Default
- Northbridge clock 2215 Default Voltage
- HTT link speed 2215 Default Voltage
- Motherboard DFI 790FXB M2RSH
- Thermaltake V1 Air Cooling

14 Hours Prime stable tongue.gif

Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

11 Pages  1 2 3 > »
Bump TopicReply to this topicTopic OptionsStart new topic


Lo-Fi Version Time is now: 9th November 2009 - 02:59 AM
All Rights Reserved 2003-2009 Vijandren Ramadass (~living on a prayer~)
